LM386

The LM386 is a highly popular, low-power audio frequency amplifier IC widely used in portable audio devices, guitar amplifiers, and hobbyist electronic projects. Designed by companies like Texas Instruments, it operates on a wide supply voltage range (4 V to 12 V or 5 V to 18 V depending on the variant) and excels at running on batteries.

Key Specifications
• Default Gain: Internally set to 20 (26 dB), allowing it to work with minimal external parts.
• Adjustable Gain: Adding a resistor and capacitor between pins 1 and 8 can boost the voltage gain up to 200 (46 dB).
• Output Power: Typically delivers 0.25 W to 1 W, depending on the supply voltage and speaker impedance.
• Quiescent Current: Draws only 4 mA, making it extremely efficient when idle.
• Speaker Impedance: Can drive 4 Ω, 8 Ω, and 32 Ω loads.

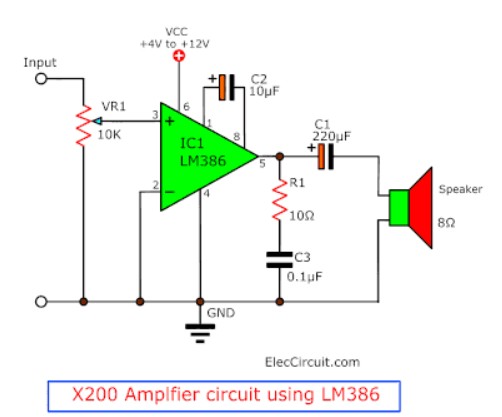

Pinout & Basic Circuit

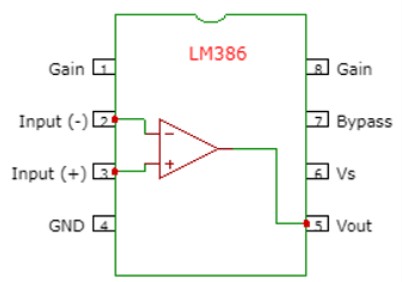

The LM386 comes in an 8-pin package
• Pins 2 & 3: Inverting and non-inverting inputs (audio signals are sent to Pin 3, Pin 2 is grounded).
• Pin 4: Ground.
• Pin 5: Output to the speaker (must be connected via a large coupling capacitor, such as 1000 μF, to block DC).
• Pin 6: Power supply (\(V_{CC}\)).
• Pins 1 & 8: Gain control pins.
