74HC74

The 74HC74 is a high-speed CMOS dual D-type positive-edge-triggered flip-flop integrated circuit. Commonly used in digital electronics for memory storage, frequency division, and shift registers, it contains two independent flip-flops, each with Data (D), Clock (CP), Set (Preset), Reset (Clear), and complementary Q and Q̄ outputs.

Core Specifications & Pinout
Operating Voltage: 2V to 6V
Max Clock Frequency: 28MHz at 5V

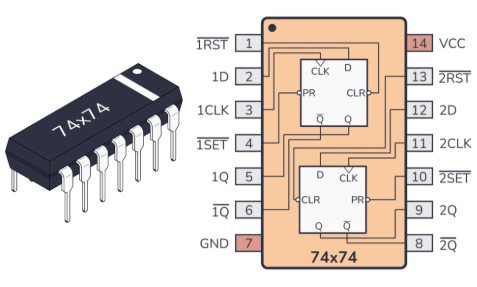

Pin Configuration (14-pin DIP/SOIC):Pin 7: Ground
Pin 14: (V_{CC}) (Power, typically 5V)
Flip-Flop 1: Pins 1 (Reset), 2 (Clock 1), 3 (Data 1), 4 {Set}, 5 (Q₁), 6 {Q₁}_
Flip-Flop 2: Pins 13 {Reset}, 11 (Clock 2), 12 (Data 2), 10 {Set}, 9 (Q₂), 8 {Q}_{2}
Packages: Available in DIP-14, SOIC-14, SSOP-14, and TSSOP-14
