555 Timer

The 555 are precision timing circuits capable of producing accurate time delays or oscillations. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low.

Features:
Timing from microseconds to hours
A stable or monostable operation
Adjustable duty cycle
TTL compatible output can sink or source up to 200mA

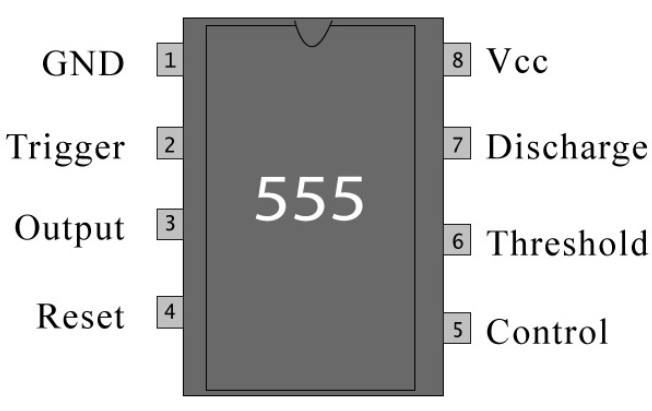

Package Options: Available through-hole (DIP-8)
