324 Op Amp

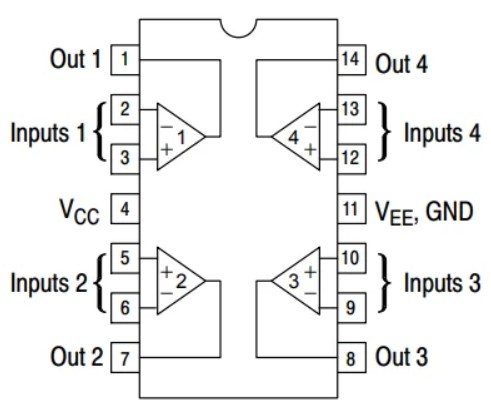

The LM324 is a popular, budget-friendly integrated circuit containing four independent, high-gain operational amplifiers (op-amps). It is primarily used to amplify weak electrical signals, act as a voltage comparator, or create active filters and waveform oscillators in general-purpose electronic and analog circuits.

Because the LM324 can operate on a single power supply rather than requiring both positive and negative voltages, engineers frequently use it in:
• Sensor Signal Conditioning: Amplifying small voltage changes from transducers (like microphones, thermistors, or strain gauges) so microcontrollers can read them.
• Voltage Comparators:
Comparing two different voltages and outputting a high or low signal based on which is higher (e.g., triggering a battery warning light when the voltage drops).
• Active Filters: Creating low-pass, high-pass, or band-pass filters to clean up noisy audio signals or isolate specific frequencies.
• Waveform Generation: Designing oscillators to generate sine, square, or triangle waves for testing equipment or timing circuits.
• Audio Preamplifiers: Boosting microphone or instrument-level signals before they reach a power amplifier.
Its ability to handle common-mode input voltages down to the ground level makes it incredibly versatile for both beginner DIY electronics projects and industrial control systems.
